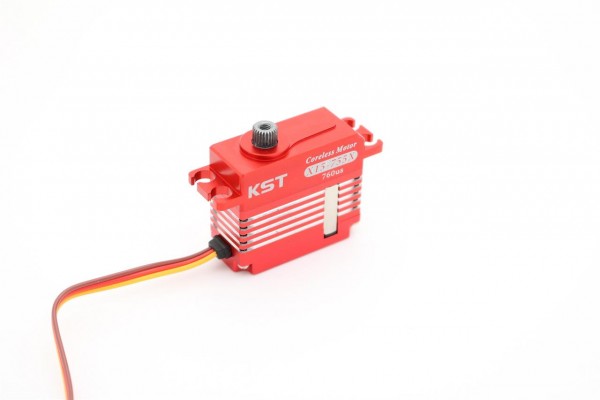

Product information “KST X15-755X 10.2kg/cm@8.4V 760us”
KST X15-755X Technical details:
Operating voltage (max.) [V]: 6.0-8.4
force[kg/cm]@4.8V: —
force[kg/cm]@6.0V: 7.2
force[kg/cm]@7.4 V: 9.0
positioning force [kg/cm]@8.4V: 10.2
positioning time [s/60°]@4.8V: —
positioning time [s/60°]@6.0V: 0.060
positioning time [s/60°]@7.4V: 0.050 Actuating
time [s/60°]@8.4V: 0.040
Width [mm]: 15.0
Length [mm]: 35.5
Height [mm]: 32.5
Weight [g]: 40.0
Motor type: Coreless
Frequency range: 760us/560Hz
Gear type: Metal Bearing
type: 2BB Gearing
: 25T-6
Servo type: Mini
Electronics: Digital
Position sensor: Potentiometer Waterproof
: No
Manufacturer: KST
Please note the servo specification from the model manufacturer when selecting the servos.
