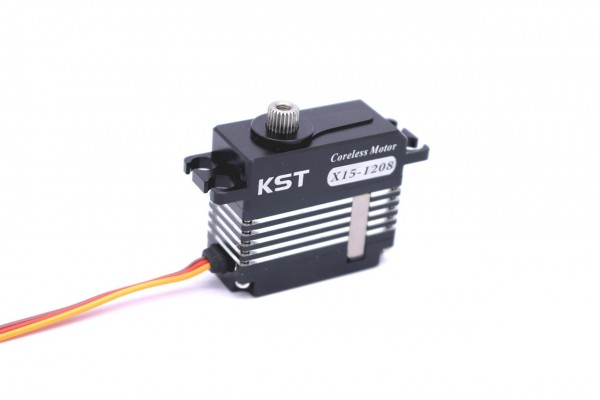

Product information “KST X15-1208 V8.0 13.5kg/cm@8.4V”
KST X15-1208 V8 Technical details:
Operating voltage (max.) [V]: 6.0-8.4
force[kg/cm]@4.8V: —
force[kg/cm]@6.0V: 9.8
force[kg/cm]@ 7.4V: 12.0
positioning force [kg/cm]@8.4V: 13.5
positioning time [s/60°]@4.8V: —
positioning time [s/60°]@6.0V: 0.100
positioning time [s/60°]@7.4V : 0.080
Actuating time [s/60°]@8.4V: 0.070
Width [mm]: 15.0
Length [mm]: 35.5
Height [mm]: 32.5
Weight [g]: 40.0
Motor type: Coreless
Frequency range: 1520us/333Hz, 900us-2100us
Gear Type: Metal
Bearing Type: 2BB Gearing
: 25T-6
Servo Type: Mini
Electronics: Digital
Position Sensor: Potentiometer Waterproof
: No
Softstart: Programmable
Manufacturer: KST
Programmable with KST-Tool 1
Please note the servo specification of the model manufacturer when selecting the servos.
